DJI Mavic Air 2 Fly More Combo

Aircraft

• Weight

• 570 g

• Size

• Folded:
  180×97×74 mm (Length×Width×Height)
  Unfolded:
  183×253×77 mm (Length×Width×Height)

• Diagonal Distance

• 302 mm

• Max Ascent Speed

• 4 m/s (S Mode)
  4 m/s (N Mode)

• Max Descent Speed

• 3 m/s (S Mode)
  3 m/s (N Mode)
  5 m/s (S Mode and N Mode during a sharp descent)
  3 m/s (all modes at elevations over 4500 m)

• Max Service Ceiling Above Sea Level

• 5000 m

• Max Flight Time (without wind)

• 34 minutes

• Max Hover Time (without wind)

• 33 minutes

• Max Flight Distance

• 18.5 km

• Max Horizontal Flight Speed

• 19 m/s (S Mode)
  12 m/s (N Mode)
  5 m/s (T Mode)

• Max Wind Resistance

• 8.5-10.5 m/s (Level 5)

• Max Tilt Angle

• 35° (S Mode)
  20° (N Mode)
  35° (N Mode under strong wind)

• Max Angular Velocity

• 250°/s (S Mode)
  250°/s (N Mode)

• Operating Temperature Range

• -10° to 40°C (14° to 104°F)

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz:
  FCC: ≤26 dBm
  CE: ≤20 dBm
  SRRC: ≤20 dBm
  MIC: ≤20 dBm

  5.725-5.850 GHz:
  FCC: ≤26 dBm
  CE: ≤14 dBm
  SRRC: ≤26 dBm

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GPS positioning)

  Horizontal:
  ±0.1 m (with vision positioning)
  ±1.5 m (with GPS positioning)

• Propellers

• Quick release, low noise, folding

• Satellite Systems

• GPS+GLONASS

• Compass

• Single Compass

• IMU

• Single IMU

• Internal Storage

• 8 GB

Battery

• Capacity

• 3500 mAh

• Voltage

• 11.55 V

• Charging Voltage Limit

• 13.2 V

• Battery Type

• LiPo 3S

• Energy

• 40.42 Wh

• Weight

• 198 g

• Charging Temperature

• 5° to 40°C (41° to 104°F)

• Max Charging Power

• 38 W

Camera

• Sensor

• 1/2" CMOS
  Effective Pixels: 12 MP and 48 MP

• Lens

• FOV: 84°
  Equivalent Focal Length: 24 mm
  Aperture: f/2.8
  Focus Range: 1 m to ∞

• ISO

• Video:
  100-6400

  Photo (12 MP):
  100-3200 (Auto)
  100-6400 (Manual)
  Photo (48 MP):
  100-1600 (Auto)
  100-3200 (Manual)

• Max Photo Resolution

• 48 MP 8000×6000 pixel

• Photo Modes

• Single: 12 MP and 48 MP
  Burst: 12 MP, 3/5/7 frames
  Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
  Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
  SmartPhoto: Scene Recognition, HyperLight, and HDR
  HDR Panorama:
  Vertical (3×1): 3328×8000 pixels (Width×Height)
  Wide-angle (3×3): 8000×6144 pixels (Width×Height)
  180° Panorama (3×7): 8192×3500 pixels (Width×Height)
  Sphere (3×8+1): 8192×4096 pixels (Width×Height)

• Photo Formats

• JPEG/DNG (RAW)

• Video Resolution and Frame Rates

• 4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
  2.7K: 2688×1512 24/25/30/48/50/60 fps
  FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
  4K Ultra HD HDR: 3840×2160 24/25/30 fps
  2.7K HDR: 2688×1512 24/25/30 fps
  FHD HDR: 1920×1080 24/25/30 fps

• Color Profiles

• D-Cinelike, Normal

• Video Formats

• MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

• Max Bitrate

• 120 Mbps

• Supported SD Cards

• Supports a microSD with capacity of up to 256 GB

• Supported File Systems

• FAT32 and exFAT

• Zoom

• Available

Gimbal

• Stabilization

• 3-axis (tilt, roll, pan)

• Mechanical Range

• Tilt: -135° to 45°
  Roll: -45° to 45°
  Pan: -100° to 100°

• Controllable Range

• Tilt: -90° to 0° (Default)
  -90° to 24° (Extended)

• Max Controllable Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

Vision System

• Forward

• Precision Measurement Range: 0.35-22.0 m
  Detection Range: 0.35 to 44 m
  Effective Sensing Speed: 12 m/s
  Field of View (FOV):
  71° (horizontal), 56° (vertical)

• Backward

• Precision Measurement Range: 0.37-23.6 m
  Detection Range: 0.37-47.2 m
  Effective Sensing Speed: 12 m/s
  Field of View (FOV):
  57° (horizontal), 44° (vertical)

• Available Downward Sensors

• Dual Vision Sensors + Time of Flight Sensors (ToF)

• Downward

• ToF Measurement Range: 0.1-8 m
  Hovering Range: 0.5-30 m
  Vision Sensor Hovering Range: 0.5-60 m

• Left/Right

• None

• Downward Auxillary Light

• Single LED

Safety

• Obstacle Avoidance System

• Advanced Pilot Assistance Systems (APAS) 3.0

Video Transmission

• Transmission System

• OcuSync 2.0
  2.4 GHz/5.8 GHz Auto-Switching

• Max Transmission Distance

• 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Live View Quality

• 720p@30fps/1080@p30fps

• Latency (depending on environmental conditions and mobile device)

• 120-130 ms

• Video Transmission Encoding format

• H.265/H.264 (Auto-switches depending on encoding capabilities of device)

• Max Transmission Bitrate

• 12 Mbps

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

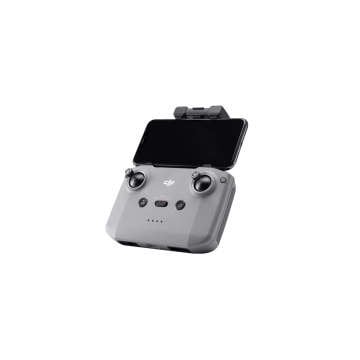

Remote Controller

• Remote Controller Transmission System

• OcuSync 2.0

• Supported Mobile Device Connectors

• Lightning, Micro USB, USB Type-C

• Max. Supported Mobile Device Size

• 180×86×10 mm (Height×Width×Thickness)

• Operating Temperature

• -10° to 40°C (14° to 104°F)

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz:
  FCC: ≤26 dBm
  CE: ≤20 dBm
  SRRC: ≤20 dBm
  MIC: ≤20 dBm

  5.725-5.850 GHz:
  FCC: ≤26 dBm
  CE: ≤14 dBm
  SRRC: ≤26 dBm

• Operating Current/Voltage

• 1200 mA@3.6V (Android)
  700 mA@ 3.6 V (iOS)

Charger

• Charging Input

• 100-240 V, 50/60 Hz, 1.3 A

• Charging Output

• Charging Port: 13.2 V⎓2.82 A
  USB Port: 5 V⎓2 A

• Voltage

• 13.2 V

• Rated Power

• 38 W
